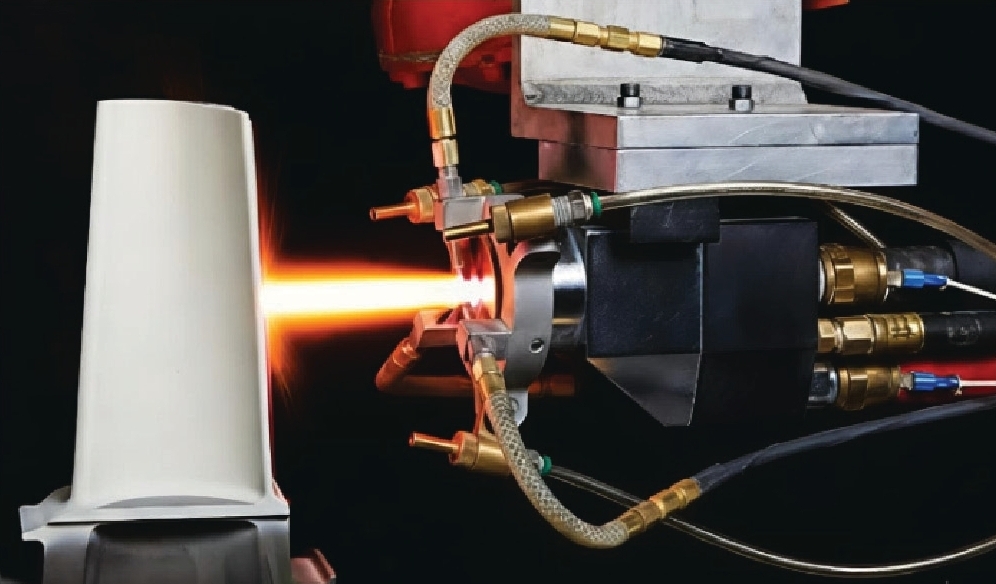

In thermal spraying—which includes methods like High Velocity Oxygen Fuel (HVOF) and Atmospheric Plasma Spray (APS)—metallic powders are fed into a heat source (either a combustible gas flame or an electrical plasma arc). The heat rapidly melts or semi-melts the powder particles, while expanding gases accelerate them toward the substrate at high velocities. Upon impact, these droplets flatten out into "splats," mechanically interlocking with the roughened surface and rapidly cooling to form a dense, continuous protective coating.
Whether it is to provide extreme wear resistance, protect against high-temperature oxidation, or restore worn parts to their original dimensions, thermal spray is the industry standard for extending component lifecycles.
| Product | Ni | Cr | Al | Mo | Fe | Others | Key Characteristics and Application |
|---|---|---|---|---|---|---|---|
| Lattice™ 56C-NS | Bal | - | - | - | - | 0.7 | Salvage & Build-up. Repair of nickel-based components and correction of mis-machining. Substitute for Monel where higher hardness/machinability is required. |
| Lattice™ 480NS | Bal | - | 5 | - | - | - | Self-Bonding / Abradable. Exothermic reaction creates superior bond strength. Dense, machinable coating for oxidation/abrasion resistance. Bond coat for ceramics. |
| Lattice™ 5640NS | Bal | 20 | - | - | - | - | Oxidation Resistance. Robust bond coat for ceramic top coats. Prevents scaling on carbon/low alloy steels. Excellent resistance to hot oxidizing and corrosive gases. |
| Lattice™ 510 | Bal | 22 | 10 | - | - | - | Self-Bonding. Resists oxidation and corrosion at high temperatures. Ideal for salvage/build-up on nickel alloys or machinable steels. |
| Lattice™ 718 (similar to Inconel 718) | Bal | 19 | 0.5 | 3 | 18 | 51 (Nb+Ta) 0.95 Ti 0.05 C | Superalloy Repair. Dense, self-bonding, machinable. Exceptional resistance to high-temp oxidation. Repair of superalloy components and protection of less noble substrates. |
| Lattice™ 625 (similar to Inconel 625) | Bal | 21.5 | - | 9 | 2.5 | 3.7 (Nb+Ta) | Severe Corrosion. Dense, self-bonding composition. Exceptional resistance to high-temperature oxidation and corrosion. |
| Lattice™ 4004NS (similar to Rene 80) | Bal | 14 | 3 | 4 | - | 9.5 Co 5.0 Ti 4.0 W | Superalloy Component Repair. Specialized alloy offering excellent resistance to high-temperature oxidation and corrosion. |
| Lattice™ 4276 (similar to Hastelloy C276) | Bal | 15.5 | - | 16 | 4 | 4.5 W | Extreme Corrosion. Withstands crevice corrosion, pitting, sulfuric acid, and chlorine service. Exceptional resistance to high temp oxidation. |
